Deep Water Aeration Cabinets

• Includes Gast rocking piston Deep Water Air Compressor


• Easily adjusted manifold assemblies provide flow control to multiple Diffuser systems


• Oil-filled pressure gauge and pressure relief valve monitor and protect compressor for enhanced reliability and longevity

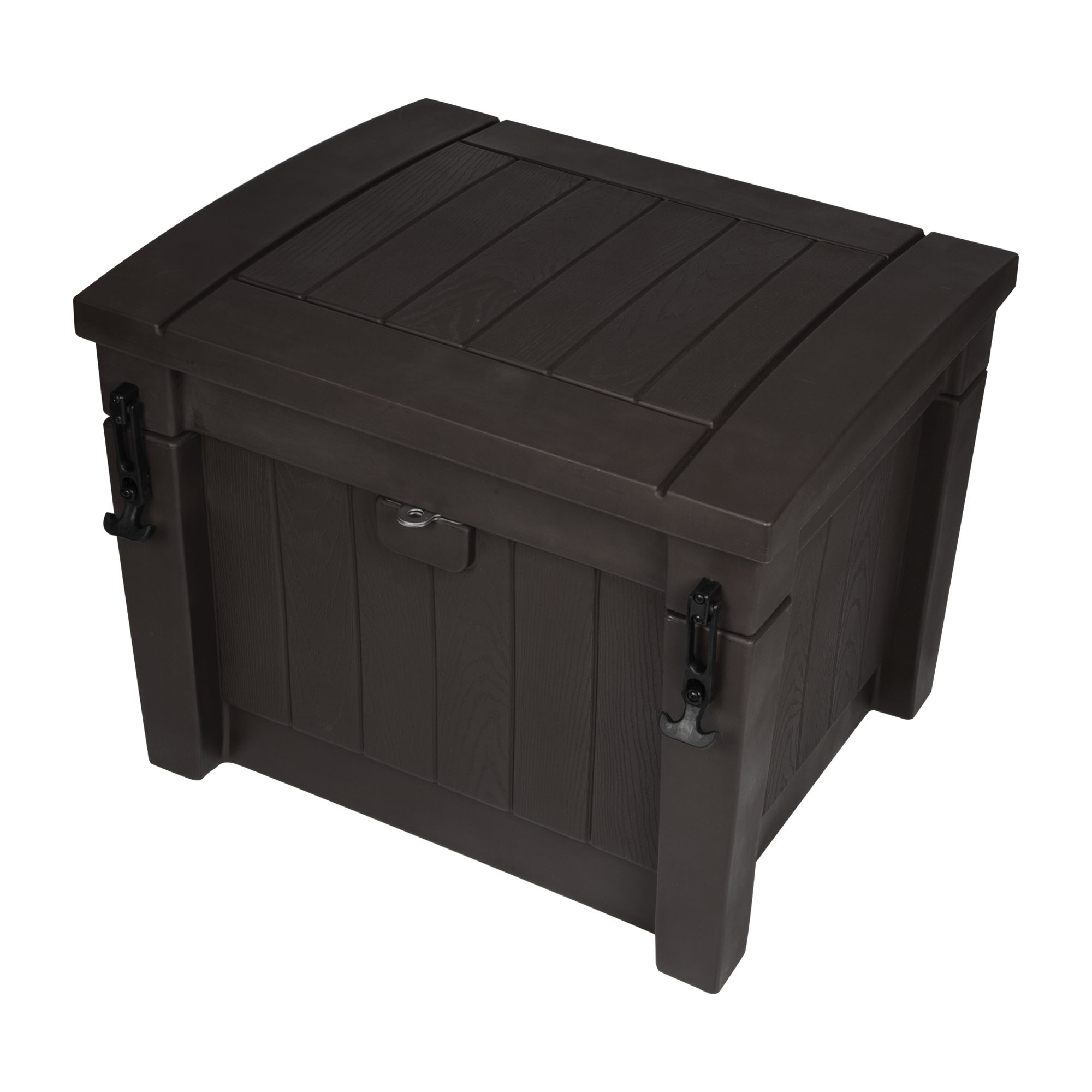

• Heavy duty double-walled Cabinets secure and protect components while muffling the sound of compressors


• Atlantic's Cabinets have reinforced lockable lids and sturdy hinges with vandal-resistant screws for secure installation

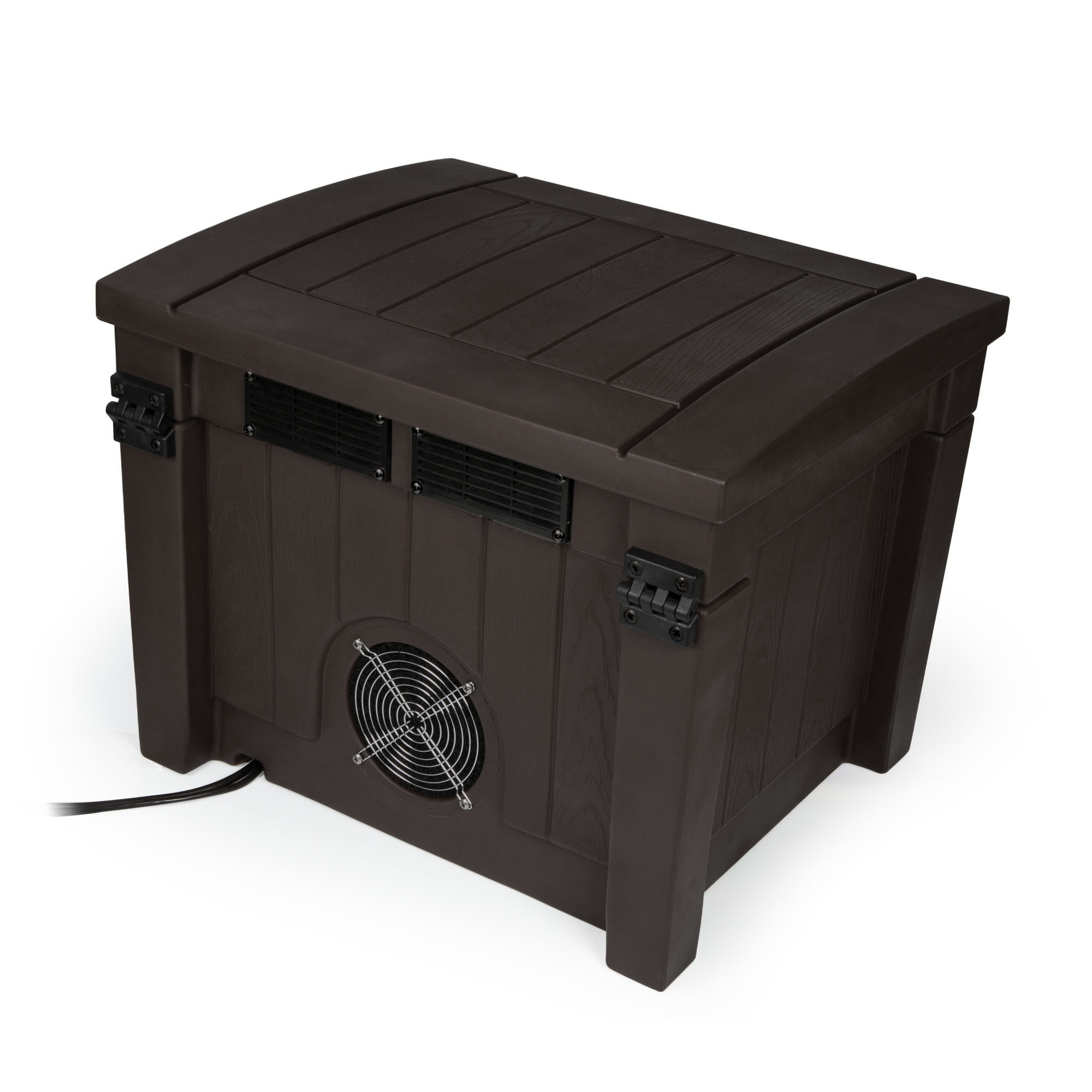

• Integrated cooling fan keeps components from overheating under the harshest conditions


• Filtered air intake protects the compressor from dust and debris

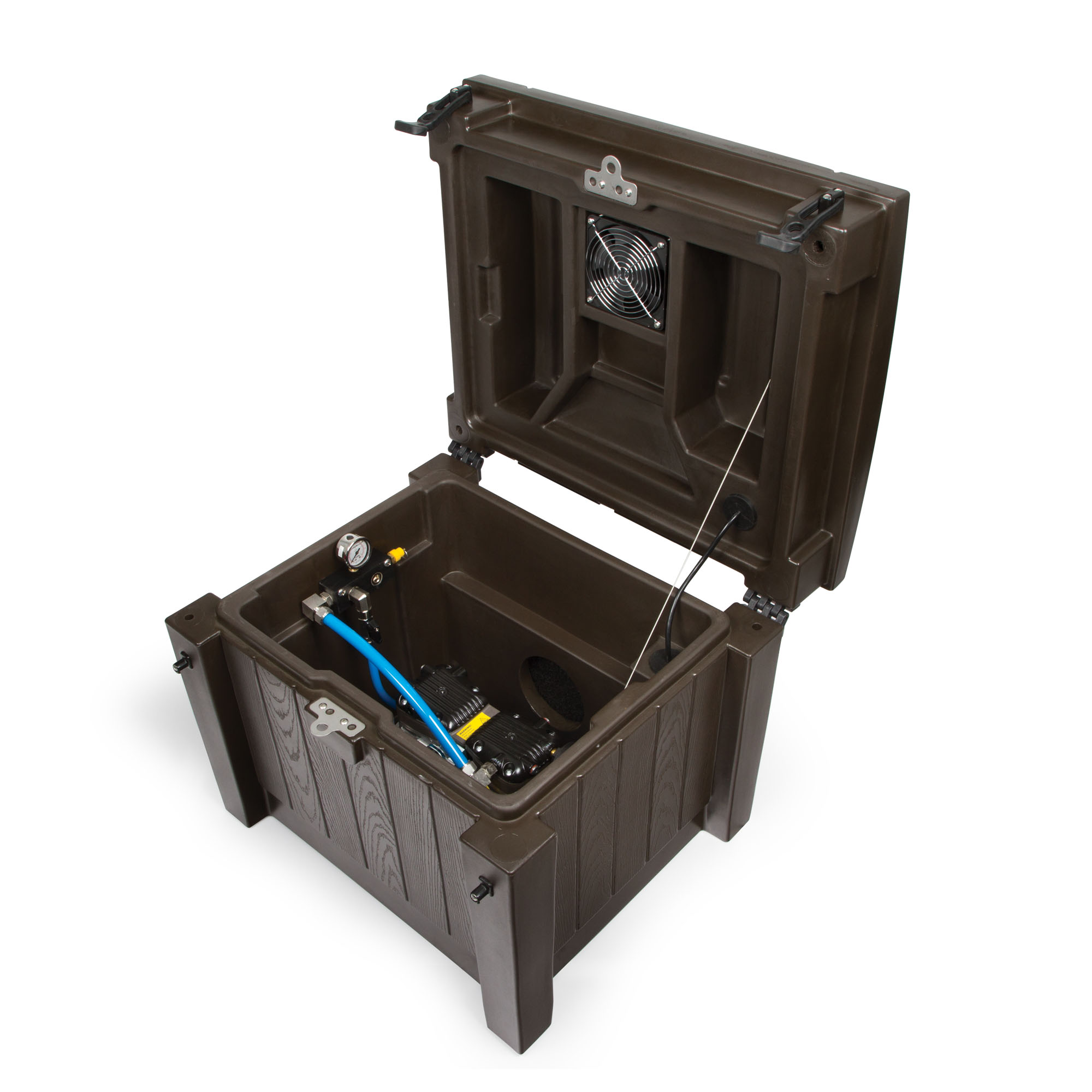

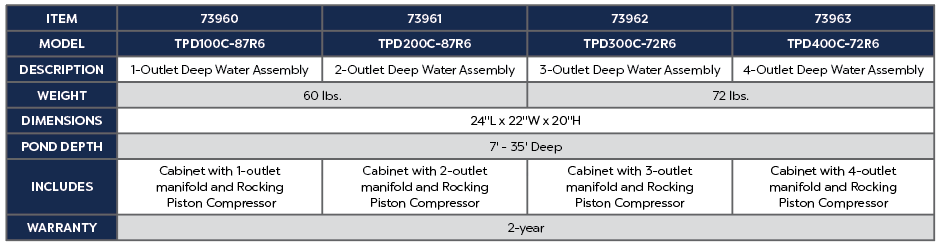

Atlantic’s Deep Water Aeration Cabinets include a Gast rocking piston Deep Water Air Compressor. The easily adjusted manifold assemblies provide flow control to multiple Diffuser systems. An oil-filled pressure gauge and pressure relief valve monitor and protect the compressor for enhanced reliability and longevity. Atlantic’s heavy duty double-walled Cabinets secure and protect the components while muffling the sound of the compressors. Atlantic’s Deep Water Aeration Cabinets have reinforced lockable lids and sturdy hinges with vandal-resistant screws for a secure installation. An integrated cooling fan keeps the components from overheating under the harshest conditions. The filtered air intake protects the compressor from dust and debris. The TPD100C-87R6 is a 1-Outlet Deep Water Assembly and can be used in ponds over 8’ deep. With dimensions of 24”L x 22”W x 20”H and a weight of 60lbs. it comes with a 2-year warranty and includes a Cabinet with a 1-outlet manifold and a Rocking Piston Compressor.
