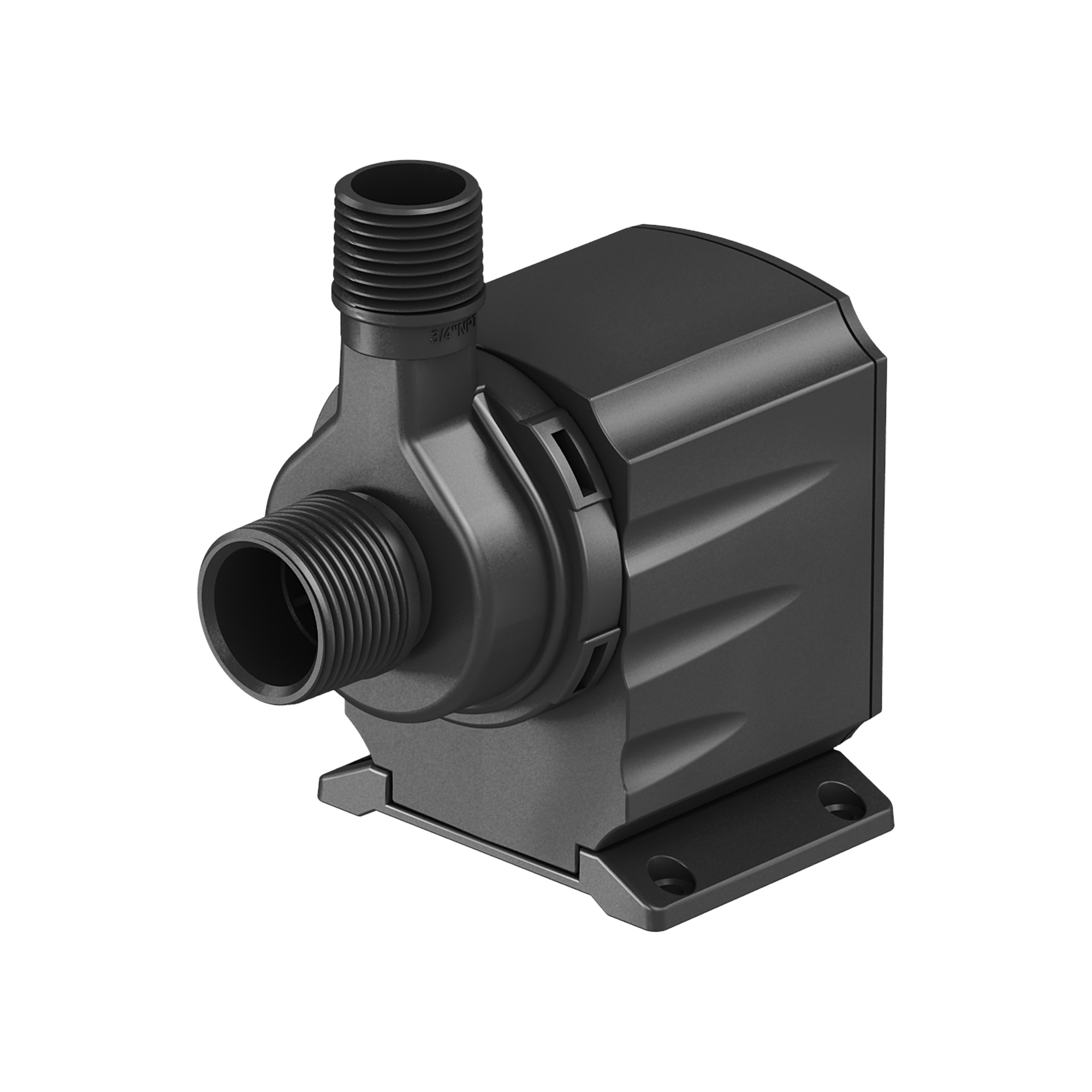

MD-Series

• Magnetic Induction pumps provide years of service under the demanding conditions of smaller ponds, waterfalls and fountains


• Atlantic MD-Series pumps feature better flows at higher heads, a longer warranty and are easier to service

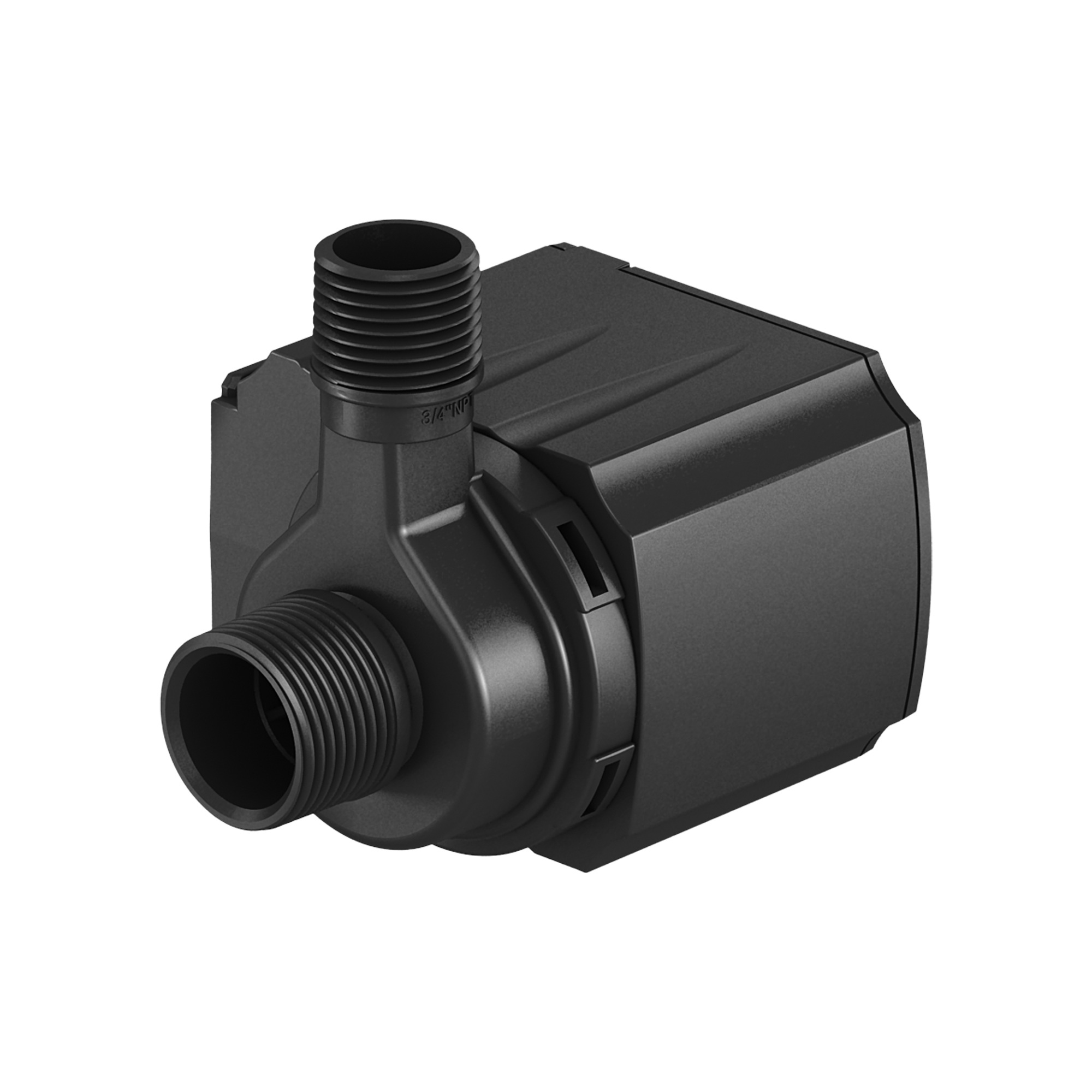

• Male threads on both inlet and outlet are less restrictive for higher flow


• Volute can be oriented in 4 ways for maximum versatility in placement


• A quarter-turn accesses replaceable impeller assembly for easy periodic cleaning to keep pump running for years


• Large, stable base for anchoring pump may be removed in tight applications

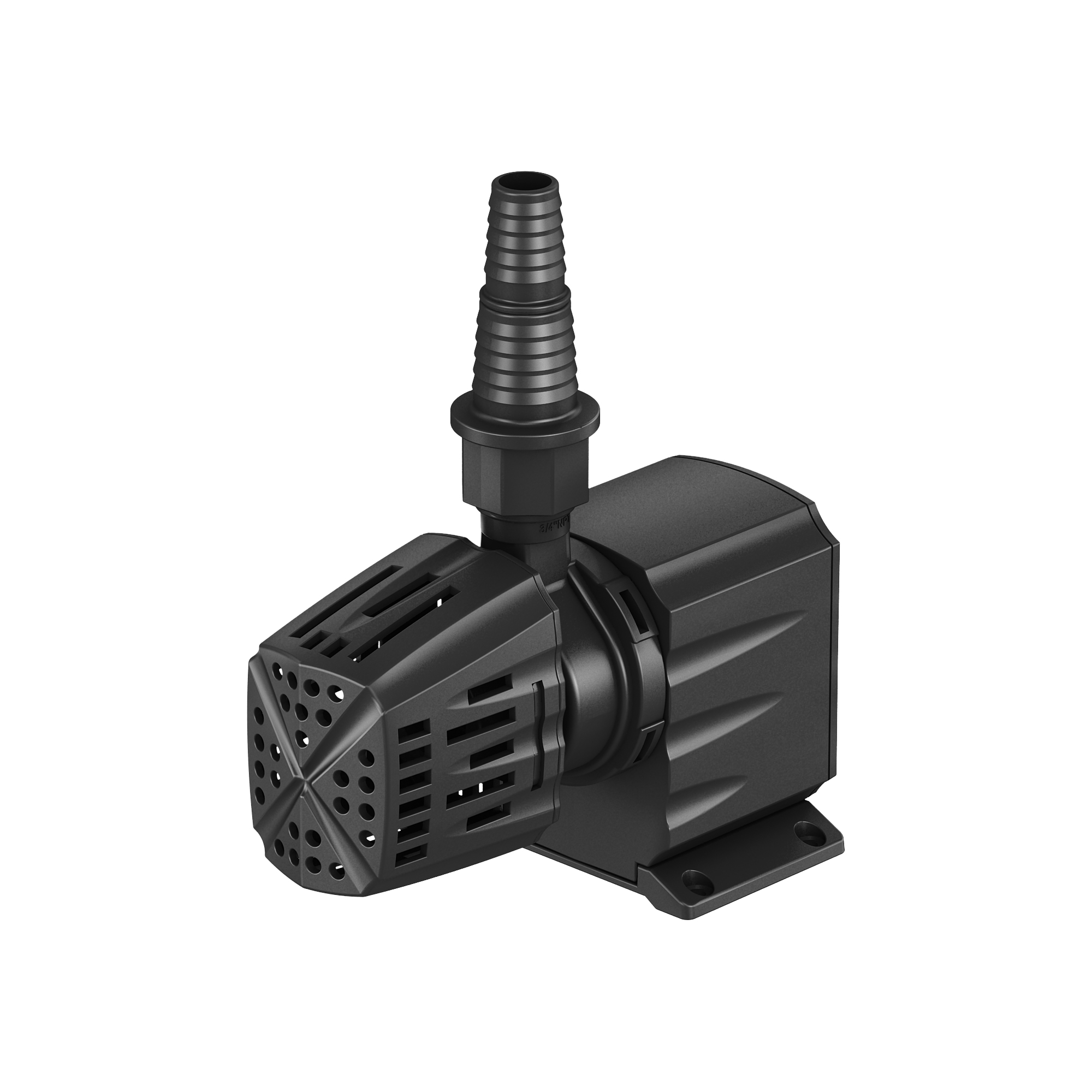

• Removable pre-filter and oversized ceramic shaft reduce internal wear and extend service life


• Included outlet fittings are tapered to fit a wide array of tubing types and sizes

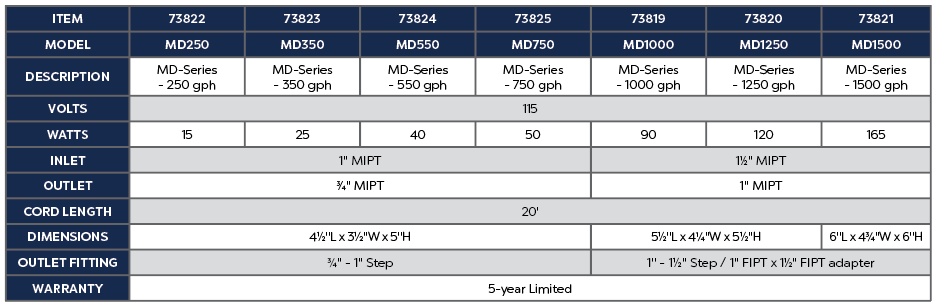

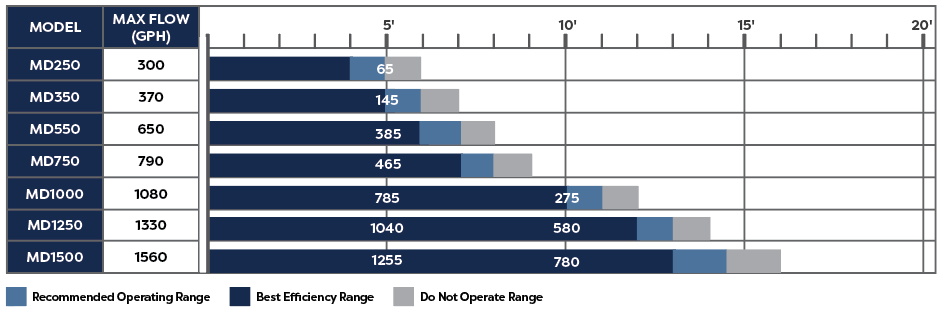

Atlantic’s MD-Series Pumps provide years of service under the demanding conditions of smaller ponds, waterfalls and fountains, with the help of its Magnetic Induction pumps. Atlantic MD-Series pumps feature better flows at high heads, a longer warranty and are easier to service. The male threads on both the inlet and outlet are less restrictive for higher flow. The Volute can be oriented in 4 ways for maximum versatility in placement. A quarter-turn accesses replaceable impeller assembly for easy periodic cleaning to pump running for years. It has a large, stable base for anchoring the pump and may be removed in tight applications. The removable pre-filter and oversized ceramic shaft reduces internal wear and extends its service life. Its included outlet fittings are tapered to fit a wide array of tubing types and sizes. The MD1000 through the MD1500 includes 1.5” adapters for use with the Triton Check Valve and Fountain Plumbing Kits. The MD350 has a max flow of 370 GPH with a 1” MIPT inlet and 0.75” outlet. It has dimensions of 4.5”L x 3.5”W x 5”H and has a 5-year warranty.

• MD-Series Manual
